Surface Treatment Standards

Abrasive blasting

Sa2.5 - Very thorough abrasive blasting

When viewed without magnification, the surface should be free from visible oil, grease, and dirt, as well as scale, rust, paint coatings, and foreign matter. Any residual traces should be only minor spots or streaks of discoloration.

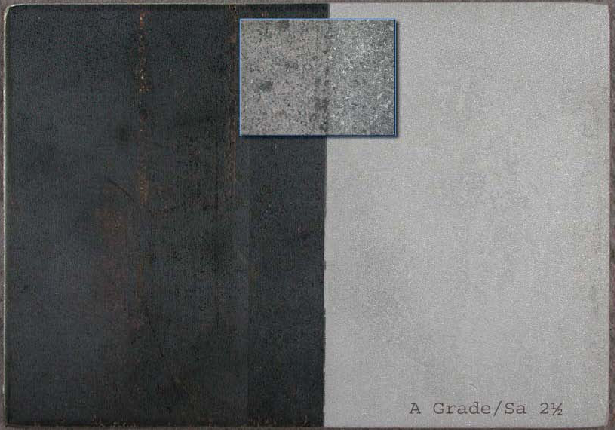

Grade A steel plate Sa2.5

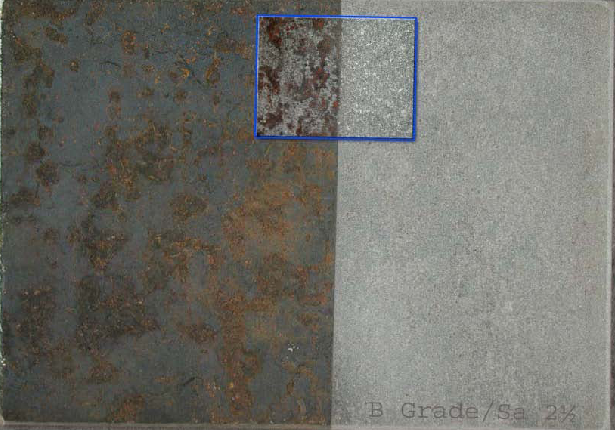

Grade B steel plate Sa2.5

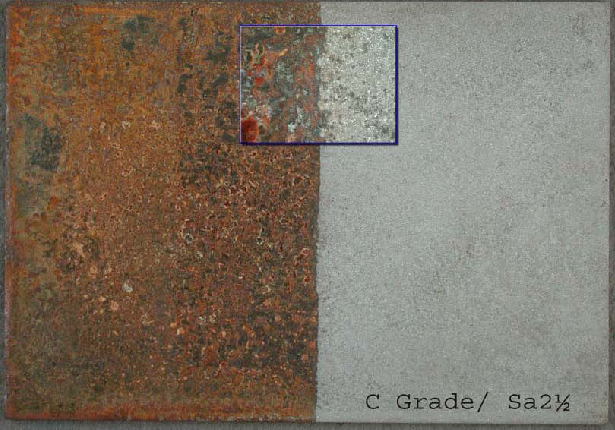

Grade C steel plate Sa2.5

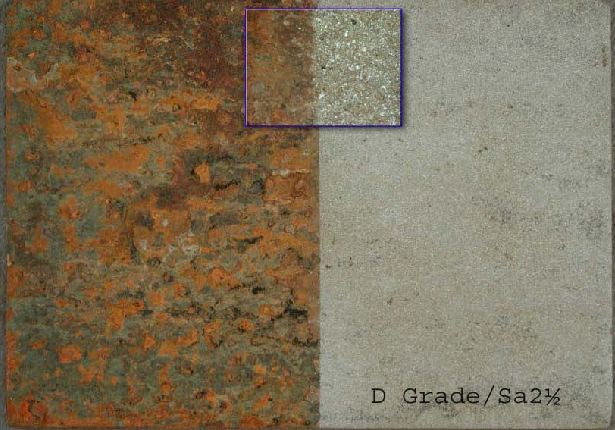

Grade D steel plate Sa2.5

Sa3 - Abrasive blasting for visually clean steel

When viewed without magnification, the surface should be free from oil, grease, and dirt, as well as scale, rust, paint coatings, and foreign matter. The surface should have a uniform metallic color.

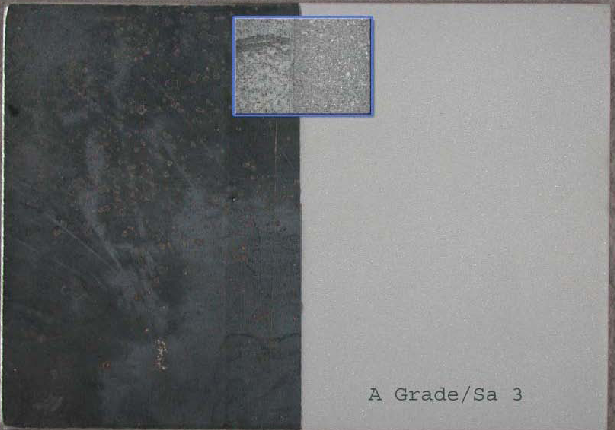

Grade A steel plate Sa3

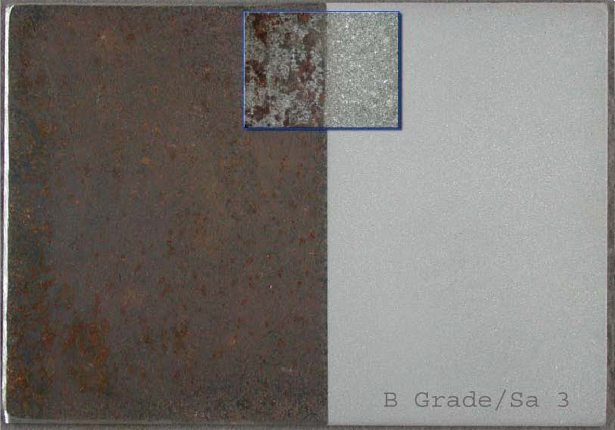

Grade B steel plate Sa3

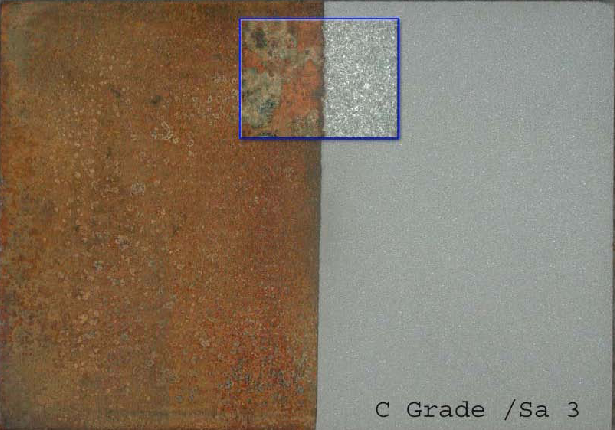

Grade C steel plate Sa3

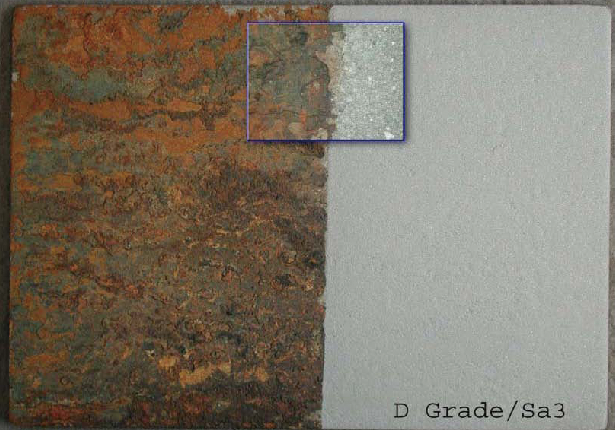

Grade D steel plate Sa3

Manual and power tool derusting

St3 - Very thorough manual and power tool derusting

When viewed without magnification, the surface should be free from oil, grease, and dirt, as well as scale, rust, paint coatings, and foreign matter. The surface should have the luster of the metal substrate.

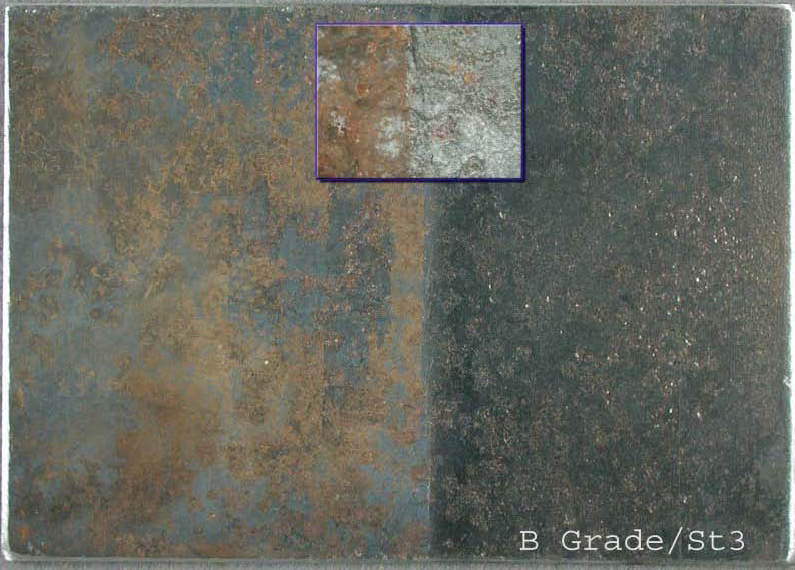

Grade B steel plate St3

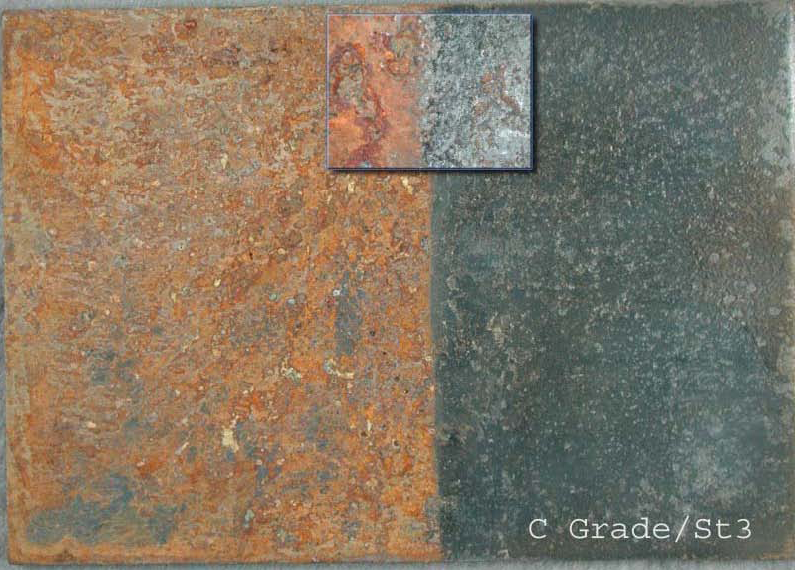

Grade C steel plate St3

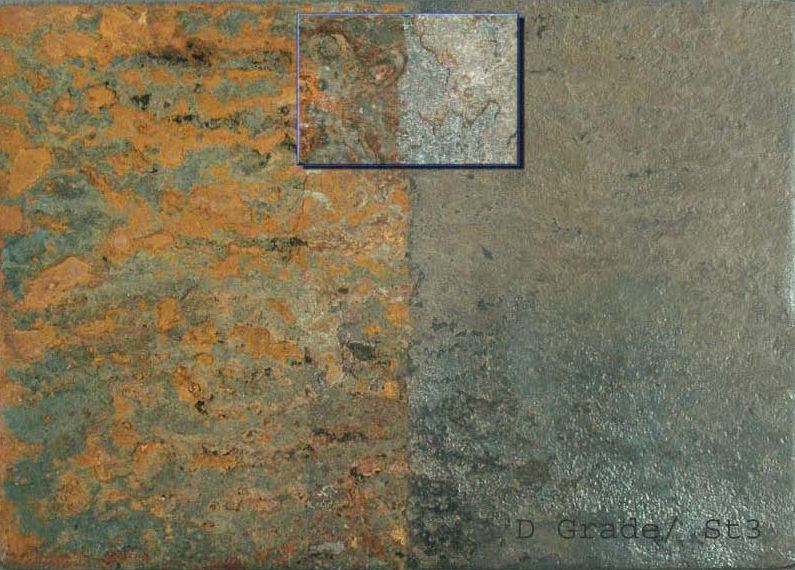

Grade D steel plate St3
